Gyro Stabilization Mounts

Land

Key Features

Land Mounts

  • Ruggedized design / IP 67 compliant

    for use in muddy and dusty offroad environments
  • High Sensor Compatibility

    round shape enables compatibility with wide range of sensors
  • External Data Import Possible

    IMU data and NMEA frame input for enhanced stabilization performance
The SOMAG

Product Line for Land Applications

The land product portfolio encompasses three different Gyro Stabilization Mounts for applications on road, rail or uneven, bumpy off-road terrain. The Mounts can be installed on any type of (rail) vehicle be it a car or mobile defense solutions, wheeled armored fighting vehicles (AFV), transport vehicles and other mobile platforms as well as manned or unmanned ground vehicles. Our products are unique as they are not limited to any specific hardware, as we want you to be as flexible as possible when selecting a camera or scanner for your projects. Our devices can be combined with a variety of 360°, thermal, video and hyperspectral cameras as well as laser scanners or antennas.

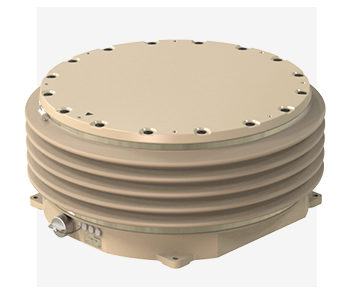

OSM 4000 – Land

Offroad Stabilization Mount

OSM 4000 – Land

NSM 400 – Land

Nimble Stabilization Mount 400

NSM 400 – Land

RSM 400 – Land

Ruggedized Stabilization Mount

RSM 400 – Land

OSM 4000NSM 400RSM 400
Angular Stabilization RangesPitch – at 0° roll:
Roll – at 0° pitch:
Yaw (Drift):
≤± 12.2° | 14.1° (optional)
≤± 17.4° | 14.1° (optional)
no drift correction
≤± 20.0°
≤± 20.0°
no drift correction
≤± 15.5°
≤± 15.5°
no drift correction
Payload1 300 kg | 250 kg | 200 kg
660 lbs | 550 lbs | 440 lbs
100 kg | 70 kg | 55 kg
220.5 lbs | 154.3 lbs | 121.3 lbs
15 kg | 12.3 kg | 10.5 kg
33.1 lbs | 27.1 lbs | 23.1 lbs
Optional Payload2 25 kg | 22.5 kg | 19 kg
55.1 lbs | 49.6 lbs | 41.9 lbs
Mass 55 kg | 120 lbs 33 kg | 72.5 lbs 6.6 kg | 14.5 lbs
Dimensions / Height3 290 mm | 11.4 in 290 mm | 11.4 in 156.5 mm | 6.2 in
Dimensions / Diameter Ø665 mm | Ø26.1 in Ø486 mm | Ø19.1 in Ø335 mm | Ø13.1 in
Preliminary data, subject to change

1 Possible payload weight depends on lateral acceleration and CoG of payload – see technical specification on product pages
2 Movement reduction in roll and pitch to ≤± 12.5° / Height: 158 mm (6.2 in)
3 Minimum/Maximum height – see technical specification on product pages
