Nimble Stabilization Mount 500

NSM 500 - Land

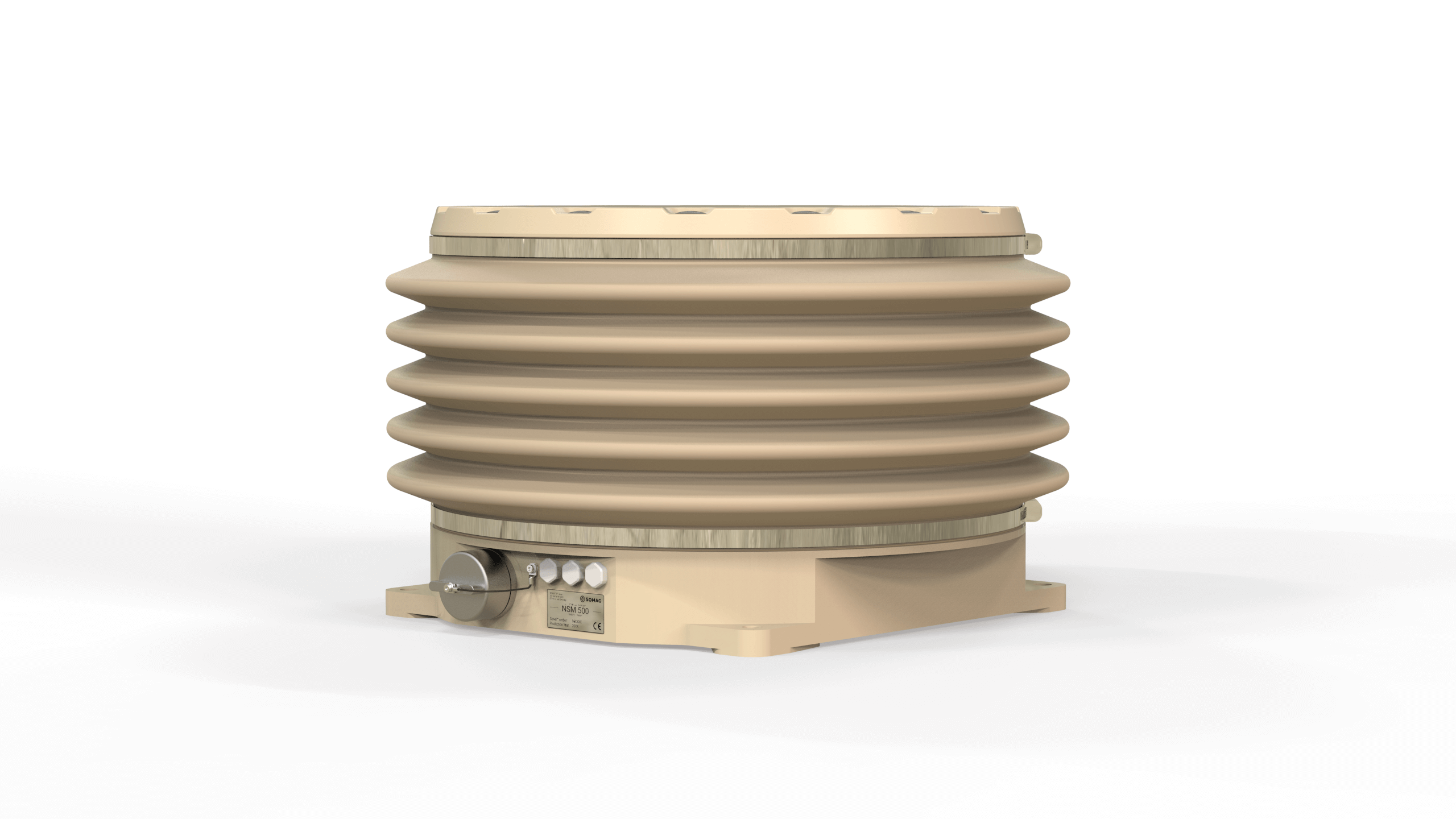

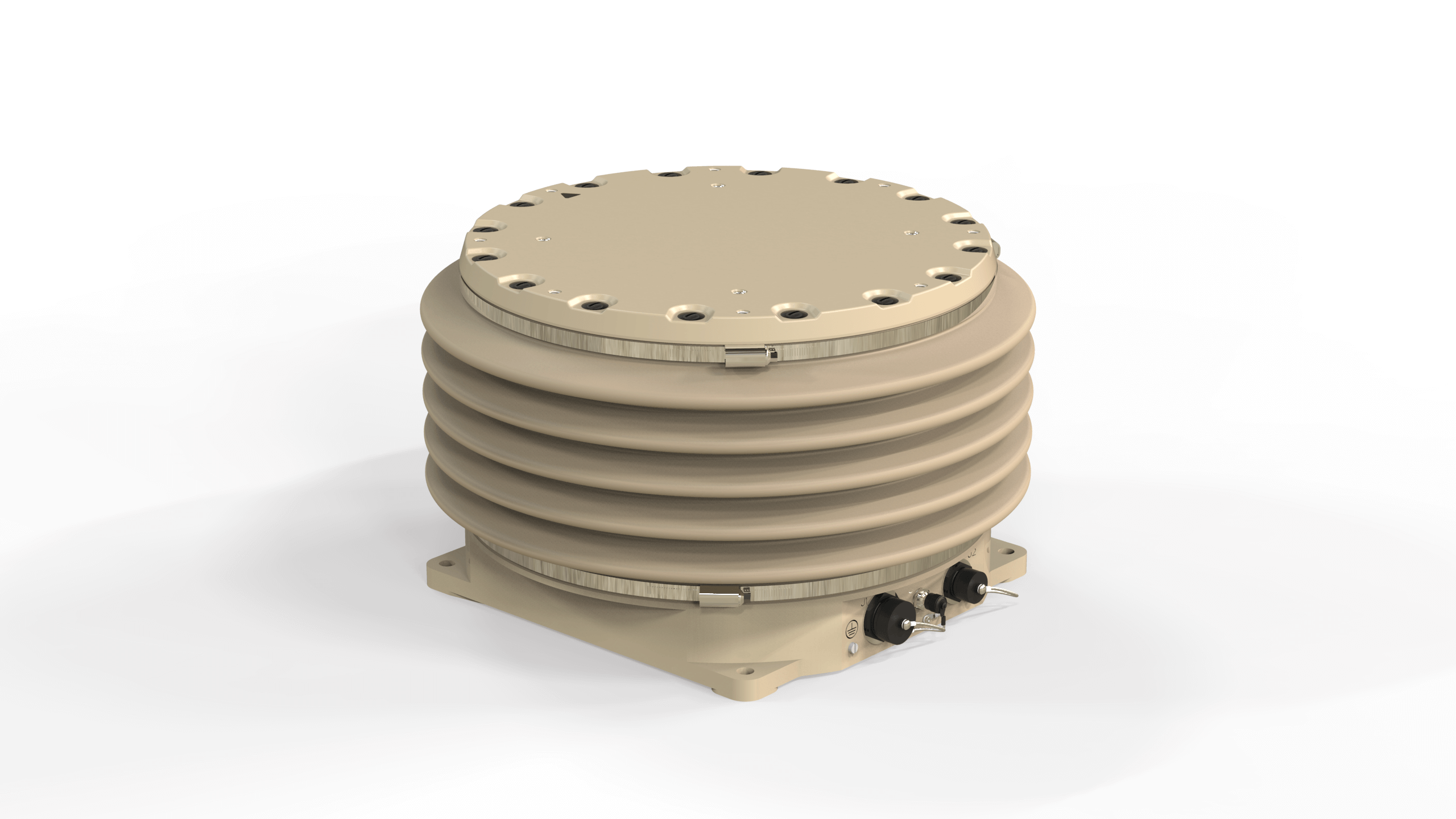

The Nimble Stabilization Mount 500 is designed to provide the best possible data acquisition and transmission in mobile land applications.


  • Designed for surveillance sensor stabilization

    on ground vehicles
  • Medium-sized Land Gyro Mount

    between smaller RSM 50 and larger OSM 5000
  • External data input possible

    for IMU data or NMEA frames

Timely and efficient decision making thanks to significantly improved data basis

As a result of high-precision motion sensors and a highly potent hydraulic system, the NSM 500 delivers improved data quality and comprehensive situational awareness. The dual-axis gyro stabilization system delivers best-in-class roll and pitch compensation of vehicles while driving over bumpy terrain or roads.

The gimbal is suitable for both commercial applications and demanding military missions. Their success often depends on the quality of the information obtained in operational environments. Improve the quality of information gathered with EO/IR and other imaging systems in mobile applications with SOMAG’s mechanical stabilization that is superior to digital stabilization alone.

Seeing is believing

The NSM 500 meets a wide range of application needs from observation and surveillance to reconnaissance and target acquisition. Simply mount the gimbal with a payload up to 100 kg on a vehicle or on a mast located on the vehicle and you are ready to go. The round shape of the NSM 500 is ideally suited for all kinds of sensors, even land borne radar systems can be stabilized – the possibilities are endless.

The stabilizer is designed for 24/7 operation and offers unsurpassed stabilization accuracy of ≤0.3° rms. The NSM 500 is equipped with an Ethernet interface and able to process external data like NMEA frames or IMU data, which improves the residual deviation performance for long term applications.


Angular Stabilization RangesPitch at 0° Roll:
Roll at 0° Pitch:
Yaw (Drift):
≤± 20.0°
≤± 20.0°
no drift correction
Residual Deviation ≤0.3° rms
Payload2 100 kg | 70 kg | 55 kg
220.5 lbs | 154.3 lbs | 121.3 lbs
Continuous Torque 125 Nm
Dynamic Peak Torque3 250 Nm
Mass 33 kg | 72.5 lbs
290 mm | 11.4 in
Ø486 mm | Ø19.1 in
IP Class IP 67
Operating Temperature-32 °C … + 55 °C | -25.6 °F…+131 °F
Storage Temperature-55 °C … + 85 °C | -67 °F…+185 °F
Communication InterfacesEthernet | RS422 | RS232
Operational Voltage24 VDC (24…30 VDC)
Average Power Consumption4 at Operational Voltage70 W
Peak Power Consumption4 at Operational Voltage 450 W
Applied StandardsIACS E10, DNV GL, 2006/42/EC Machinery
Preliminary data, subject to change

1 Vehicle motion ≤± 18° / 15°/s / 40°/s2 – small periodical lateral accelerations (≤ 0.5 g) acceptable, constant lateral accelerations for more than 1 minute reduce the performance of the Mount (can be compensated by external GPS input)
2 Possible payload weight depends on lateral acceleration and CoG of payload | shown data is based on 0.9 g lateral acceleration and a CoG payload offset to the Mount surface of: 250 mm (9.8 in) | 400 mm (15.7 in) | 500 mm (19.7 in)
3 Maximum duration 90 s at 55 °C surrounding temperature / longer if temperature inside the unit is < 55 °C
4 Horizontal payload CoG offsets are not considered; without wind force and other possible external forces
