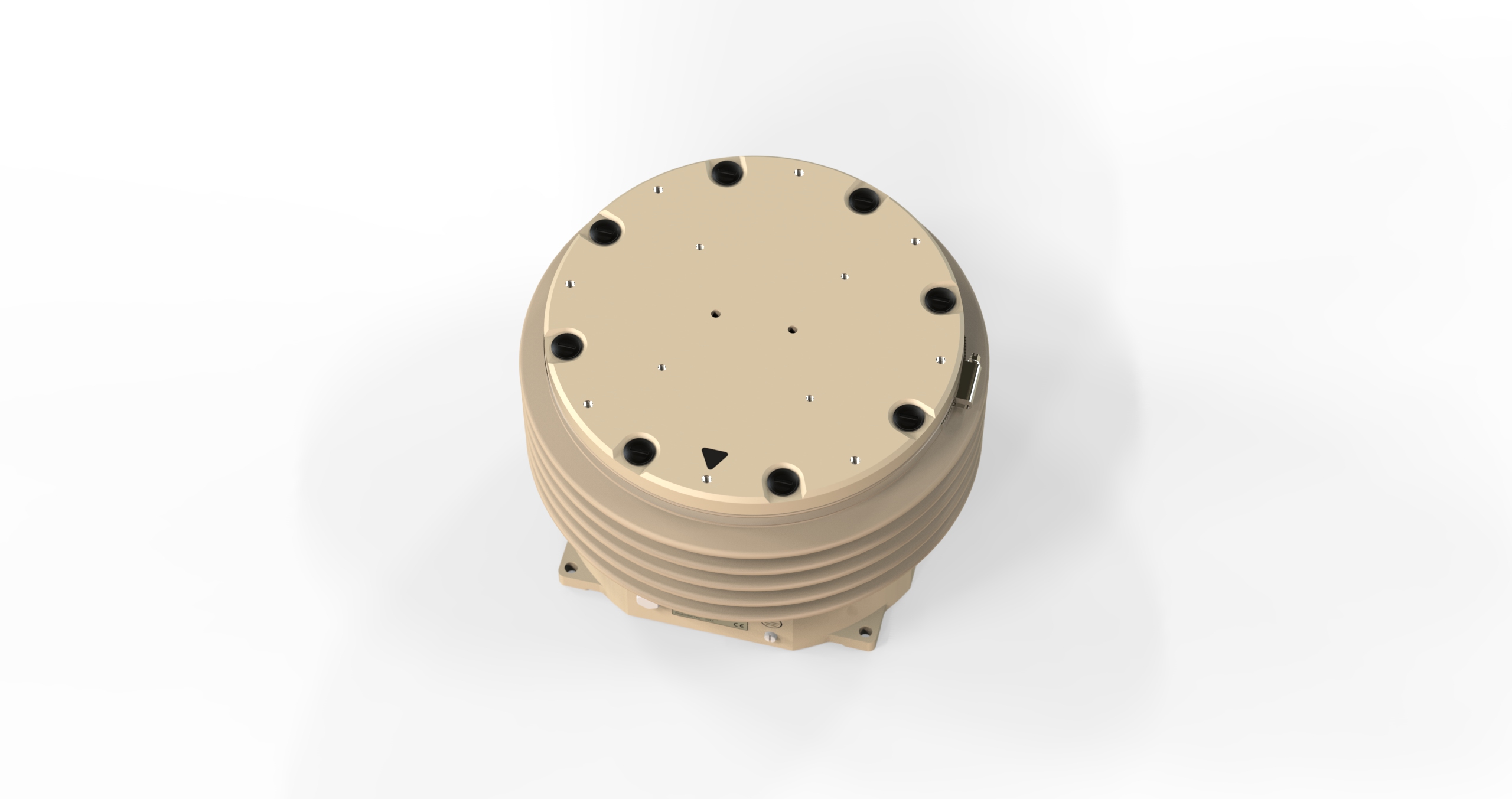

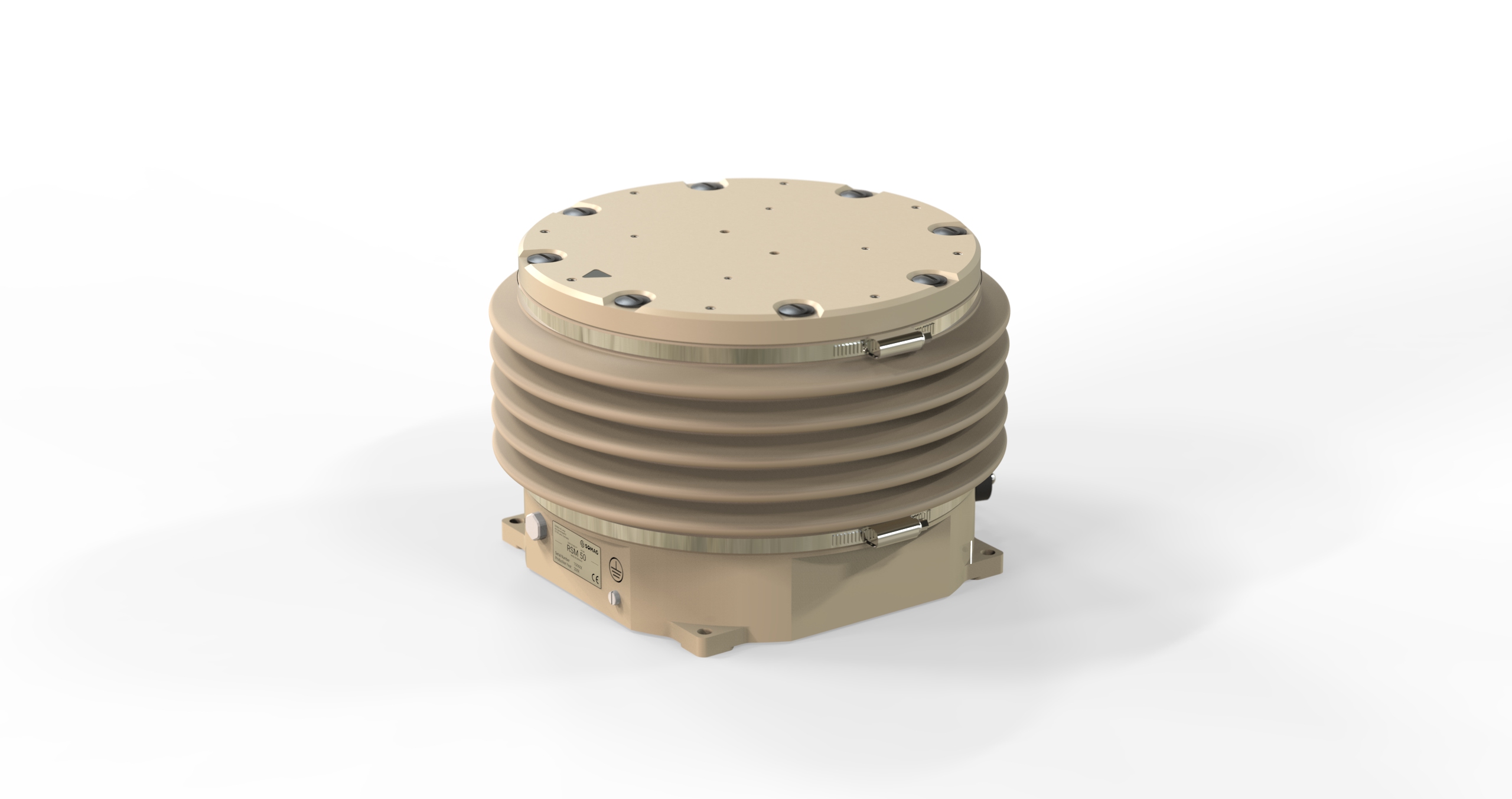

Ruggedized Stabilization Platform

RSM 50 - Land

The Ruggedized Stabilization Platform 50 is designed to provide the highest possible level of stabilization for mobile mapping, scanning, imaging and video capturing with ground vehicles.



Advantages

  • Compact and lightweight design

    suitable for deployment on UGVs and vehicles
  • Adaptable to operational requirements

    upside-down hanging application possible
  • Most cost-effective land Gyro Mount

    suitable for entry-level users

Maximize the performance of your sensors with our gyro stabilization

The RSM 50 is the smallest and most cost-effective gyro-stabilized platform of SOMAG’s land gimbals. Mobile mapping and scanning or video and image acquisition – for all these applications, the RSM 50 is the perfect addition to your compact sensor system. With minimal dimensions and a light weight of only 11.5 kg (24.3 lbs), the RSM 50 is ideal for applications where space is at a premium. Located on top of cars, small UGVs and mining vehicles, the Gyro Stabilization Mount compensates for roll and pitch movements that occur while driving. The recordings will be unaffected by vehicle motions because the sensor remains stabilized the entire time.

Precisely adaptable to your needs

The electromechanical gimbal system ensures stabilized imagery for sensors up to 40 kg. High-quality materials and a solid mechanical construction guarantee effective use of this dust, salt and splash water resistant mounting system designed for mobile data capturing. The offroad gimbal comes with an energy-saving mode. This stand-by mode is advantageous for long-term applications. Additional features include extended diagnosis possibilities and a failsafe braking system to securely lock the payload during power outage. The new Ethernet communication interface allows for an integration into existing networks as well as a control and monitoring of multiple mounts within a network.


Specifications

Angular Stabilization Ranges Pitch at 0° Roll:
Roll at 0° Pitch:
Yaw (Drift):
≤± 20.0°
≤± 20.0°
no drift correction
Residual Deviation1 ≤0.3° rms
Payload2 40 kg | 25 kg | 12.5 kg
88.2 lbs | 55.1 lbs | 27.6 lbs
Continuous Torque 25 Nm
Dynamic Peak Torque3 50 Nm
Mass 11.5 kg | 24.3 lbs
DimensionsHeight:
Diameter:
197.5 mm | 77.8 in
Ø306 mm | Ø12 in
IP Class IP 67
Operating Temperature -32 °C … +55°C | -25.6 °F…+131 °F
Storage Temperature -55 °C … +85 °C | -67 °F…+185 °F
Communication Interfaces Ethernet | RS422 | RS232 (optional)
Operational Voltage 24 VDC (24…30 VDC)
Average Power Consumption4 at Operational Voltage 50 W
Peak Power Consumption4 at Operational Voltage 250 W
Applied Standards IACS E10, DNV GL, 2006/42/EC Machinery
Preliminary data, subject to change

1 Vehicle angular motion ≤± 18° / 25°/s / 40°/s2 – small periodical lateral accelerations (≤ 0.5 g) acceptable; constant lateral accelerations for more than 1 minute resulting from vehicle’s turning maneuvers are compensated by internal or external GPS input. No GPS input could reduce the performance of the Mount during turning maneuvers.
2 Possible payload weight depends on lateral acceleration and CoG of payload | shown data is based on 1.0 g lateral acceleration and a CoG payload offset to the Mount surface of: 125 mm (4.9 in) | 200 mm (7.9 in) | 400 mm (15.7 in)
3 Maximum duration 90 s at 55 °C surrounding temperature / longer if temperature inside the unit is < 55 °C
4 Horizontal payload CoG offsets are not considered; without wind force and other possible external forces

Applications

Whether on the road or off-road – mobile data collection can be challenging when disturbed by vehicle motions. SOMAG develops and manufactures Gyro Stabilization Mounts for precise stabilization of imaging sensors and other payloads in mobile land applications. Would you like to see in which cases SOMAG Land Mounts are beneficial? We have compiled a number of examples for you that show the variety of application scenarios for our devices.

Discover all land applications

Downloads

Discover all Gyro Stabilization Mounts with their specifications at a glance in our new product catalog. Below you will also find Mount-specific documentation. Do you need other documents? Then do not hesitate to contact us. We will gladly send you manuals on request.

SOMAG Product Brochure

RSM 50 Land Data sheet



Mount Control App and Software Features

Mount Control App
For all Gyro Stabilization Mounts, SOMAG provides a self-developed Mount Control App with numerous features. It is your all-in-one tool for managing your Mount. The app is part of the standard scope of delivery of each device and is delivered on a USB stick together with the Mount.

Software Features
SOMAG offers optional Software Features which allow you to customize your Mount individually to your mission requirements. Feature management and settings can conveniently be made in the SOMAG Mount Control App. Get the most out of your stabilization platform and learn more about the optional Software Features.

SOMAG Mount Control App

Software Features
