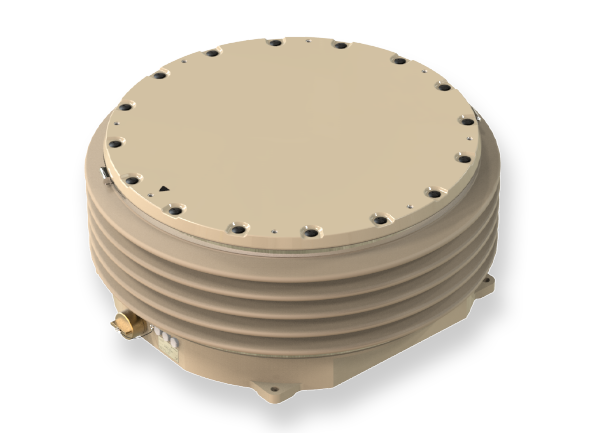

The Offroad Stabilization Mount 4000 – Land is SOMAG’s most powerful gimbal system for precise sensor stabilization in on-the-move environments.
- Highest payload stabilization of land Gyro Stabilization Mount series
- Highest stabilization accuracy of land Gyro stabilization Mount series
- External data input possible for IMU data or NMEA frames
Powerful and precise vehicle mounted camera stabilization
Whether on the road, off-road or on rails – everything that moves on land generates motions. A recording of videos and capturing of images is disturbed by these movements. Our OSM 4000-Land is designed to provide the best possible mobile data recording and to compensate for these roll and pitch movements caused by the vehicle. First-class built-in sensors detect the movements, precise internal algorithms calculate the compensation and an extremely powerful hydraulic gimbal system counterbalances them. From video cameras to LiDAR systems to infrared-, hyperspectral or pan/tilt/zoom cameras – all payloads benefit from stabilization, as significantly improved data acquisition results from leveraging a gyro stabilization. The OSM 4000 is the strongest stabilization platform ever developed by SOMAG. Thanks to the hydraulic system and a dynamic peak torque of 550 Nm, heavy (multi-) sensor systems of up to 300 kg can be aligned absolutely precisely to the horizon or to the desired direction.
Dual-axis gyro stabilizer for large vehicles
The dual-axis gyro stabilization ensures enhanced observation and surveillance capabilities on mobile defense solutions, wheeled armored fighting vehicles (AFV), cross country trucks, transport vehicles and other mobile platforms and ground vehicles. The weatherproof design (IP class 67) protects the offroad gimbal from environmental influences such as dust, salt- and splash water.
The OSM 4000 now offers an Ethernet interface for easy integration into the vehicle’s infrastructure. Transmission of external data such as GPS data can be realized as well as the input of IMU data for improved stabilization in terms of leveling and heading accuracy.
|Angular Stabilization Ranges||Pitch at 0° Roll:|
Roll at 0° Pitch:
|≤± 12.2° | 14.1° (optional)|
≤± 17.4° | 14.1° (optional)
no drift correction
|Residual Deviation1||≤0.4° rms|
|Payload2||300 kg | 250 kg | 200 kg |
660 lbs | 550 lbs | 440 lbs
|Continuous Torque||225 Nm|
|Dynamic Peak Torque3||550 Nm|
|Mass||55 kg | 120 lbs|
|290 mm | 11.4 in|
Ø665 mm | Ø26.1 in
|IP Class||IP 67|
|Operating Temperature||-30 °C … + 55 °C | -22 °F…+131 °F|
|Storage Temperature||-55 °C … + 85 °C | -67 °F…+185 °F|
|Communication Interfaces||Ethernet | RS422 | RS232|
|Operational Voltage||48 VDC (44…52 VDC)|
|Average Power Consumption4 at Operational Voltage||120 W|
|Peak Power Consumption4 at Operational Voltage||950 W|
|Applied Standards||IACS E10, DNV GL, 2006/42/EC Machinery|
| Preliminary data, subject to change|
1 Vehicle motion ≤± 12° / 12°/s / 10°/s2 – small periodical lateral accelerations (≤ 0.5 g) acceptable, constant lateral accelerations for more than 1 minute reduce the performance of the Mount (can be compensated by external GPS input)
2 Possible payload weight depends on lateral acceleration and CoG of payload / shown data is based on 0.5 g lateral acceleration and a CoG payload offset to the Mount surface of: 370 mm (14.6 in) | 450 mm (17.7 in) | 550 mm (21.7 in)
3 Maximum duration 90 s at 55 °C surrounding temperature / longer if temperature inside the unit is < 55 °C
4 Horizontal payload CoG offsets are not considered; without wind force and other possible external forces
Whether on the road or off-road – mobile data collection can be challenging when disturbed by vehicle motions. SOMAG develops and manufactures Gyro Stabilization Mounts for precise stabilization of imaging sensors and other payloads in mobile land applications. Would you like to see in which cases SOMAG Land Mounts are beneficial? We have compiled a number of examples for you that show the variety of application scenarios for our devices.
Discover all Gyro Stabilization Mounts with their specifications at a glance in our new product catalog. Below you will also find Mount-specific documentation. Do you need other documents? Then do not hesitate to contact us. We will gladly send you manuals on request.
Mount Control App and Software Features
Mount Control App
For all Gyro Stabilization Mounts, SOMAG provides a self-developed Mount Control App with numerous features. It is your all-in-one tool for managing your Mount. The app is part of the standard scope of delivery of each device and is delivered on a USB stick together with the Mount.
SOMAG offers optional Software Features which allow you to customize your Mount individually to your mission requirements. Feature management and settings can conveniently be made in the SOMAG Mount Control App. Get the most out of your stabilization platform and learn more about the optional Software Features.
